Description

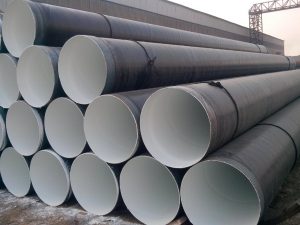

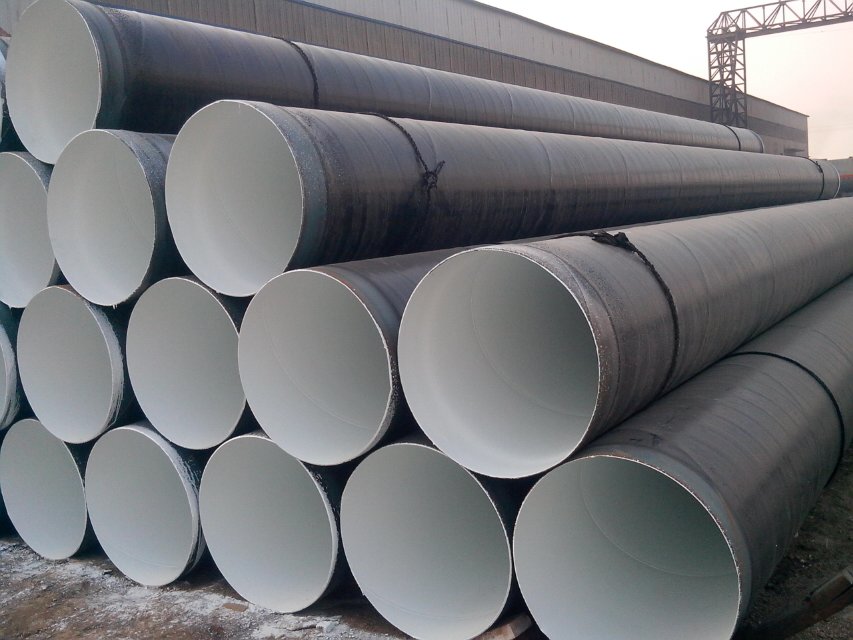

Product Name:Epoxy Coated Pipe, Epoxy Coating Pipeline
Size Range: 60.3mm-2540mm
Type:Seamless / ERW / Welded / Fabricated / LSAW
Length:Single Random, Double Random
End:Plain End, Bevelled End, Threaded
Application: Used for natural gas, petroleum, water & sewage, and pipe systems
If you have any Inquiry, please don't hesitate to contact us immediately.
Mobile phone Number/Wechat:8617338044328
whatsapp:8617392833112
If you have any questions, please contact us immediately, email: sales@building-decoration.com
| Standard |
API 5L |
| Grade |
PSL-1 |
API 5L – Gr.B/X42/X46/X52/X60/X70 etc. |
| ( Material) |
PSL-2 |
ISO3183 – L245/L290/L320/L360/L415/L485 etc. |
| Minimum Order Quantity |
1 Ton |
| Outside Diameter Ranges |
PSL-1 |
0.405-80(in) or 10.3mm-2032mm |
| PSL-2 |
4 1/2 -80(in) or 114.3mm-2032mm |
| Wall Thickness Ranges |
SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm |
| Length |
For 20Ft Container |
4.8m-5.8m |
| (negotiable) |
For 40Ft Container |
4.8m-12m |
|
Most common choice |
6m, 12m |
| Type |
Welded |
ERW,LSAW/SSAW |
| Seamless |
Cold Drawn,Hot Finished,Hot Expanded |
| Cap (negotiable) |
Pipe size should under DN600 |
| Pipe End |
Plain end |
All sizes |
| Bevel end |
Pipe size above DN50, and the thickness should greater than 3.2mm |
| Our advantages |
·Diverse products(Steel pipes, pipe fittings, other fittings) |
| ·Any third party inspection is accepted by we company. |
| ·Quick response in quotation,delivery,after-service. |
| ·Focus on pipe & tube solution for project application. |
| External Coating |
| Coating type |
Coating Standard |
| 3LPE/3LPP |
DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009 |
| 2LPE/2LPP |
SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009 |
| FBE(Fusion-bond epoxy) |
SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001 |
| Bitumen coating
Enamel &Tape hot-applied |
BS534-1990,AWWA203-2002,AWWA214-2000 |
| Liquid epoxy coating |
AWWWA C210-2007 |
| Polyurethane insulated coating |
SY/T0415-1996,CJ/T114-2000.EN253-1994 |
| Internal Coating |
| Liquid Epoxy Coating |
AWWAC210-2007 |
| FBE |
AWWAC213-2001 |
| Cement Mortar Lining |
BS534-1990,AWWA C205-2001 |
| Bitumen Coating |
BS534-1990 |
Specification
| Coating Thickness |
.004" to .006" per coat |
| Temperature Range |
300°F maximum |
| Chemical Resistance (ASTM D543) |
Excellent |
| Hardness (ASTM D3363) |
> 8 H |
| Adhesion (ASTM D4541) |
1933 psi |
| Coating Color |
various options available |
| Standard of Epoxy Coated Pipe |
AC298 Internal Epoxy Barrier Pipe Coating
AWWA C210 Liquid Epoxy Coating and Lining
IGC 189-2006 : Internal Epoxy Barrier Pipe Coating Material
NSF/ANSI Standard 61 -for Drinking Water Systems Components
AWWA C 213
CSA Z245.20
IS 3589 Annexure C |
| FBE Coated Pipe Marking |
Manufacturer’s name, logo or trademark
Trade Designation
NSF SE |
| Color Code of Solvent Free Epoxy Coating |
Yellow
Black
Green
Gray
Iron red
Light blue |
Standard
| .D. |
O.D. |
SCH 10 |
SCH 30/40 |
| W.T. |
NORMAL WEIGHT |
W.T. |
NORMAL WEIGHT |
| (mm) |
(INCH) |
(mm) |
(inch) |
(mm) |
(inch) |
(kg/mtrs) |
(lbs/ft) |
(mm) |
(inch) |
(kg/mtrs) |
(lbs/ft) |
| 15 |
1/2'' |
21.30 |
0.840 |
---- |
---- |
---- |
---- |
2.77 |
0.109 |
1.27 |
0.85 |
| 20 |
3/4'' |
26.70 |
1.050 |
2.11 |
0.083 |
1.28 |
0.96 |
2.87 |
0.113 |
1.69 |
1.13 |
| 25 |
1'' |
33.40 |
1.315 |
2.77 |
0.109 |
2.09 |
1.41 |
3.38 |
0.133 |
2.50 |
1.68 |
| 32 |
1.1/4'' |
42.20 |
1.660 |
2.77 |
0.109 |
2.69 |
1.81 |
3.56 |
0.140 |
3.39 |
2.27 |
| 40 |
1.1/2'' |
48.30 |
1.900 |
2.77 |
0.109 |
3.11 |
2.09 |
3.68 |
0.145 |
4.05 |
2.72 |
| 50 |
2'' |
60.30 |
2.375 |
2.77 |
0.109 |
3.93 |
2.64 |
3.91 |
0.154 |
5.45 |
3.66 |
| 65 |
2.1/2'' |
73.00 |
2.875 |
3.05 |
0.120 |
5.26 |
3.53 |
5.16 |
0.203 |
8.64 |
5.80 |
| 80 |
3'' |
88.90 |
3.500 |
3.05 |
0.120 |
6.46 |
4.34 |
5.49 |
0.216 |
11.29 |
7.58 |
| 90 |
3.1/2'' |
101.60 |
4.000 |
3.05 |
0.120 |
7.41 |
4.98 |
5.74 |
0.226 |
13.58 |
9.12 |
| 100 |
4'' |
114.30 |
4.500 |
3.05 |
0.120 |
8.37 |
5.62 |
6.02 |
0.237 |
16.09 |
10.80 |
| 125 |
5'' |
141.30 |
5.563 |
3.40 |
0.134 |
11.58 |
7.78 |
6.55 |
0.258 |
21.79 |
14.63 |
| 150 |
6'' |
168.30 |
6.625 |
3.40 |
0.134 |
13.85 |
9.30 |
7.11 |
0.280 |
28.29 |
18.99 |
| 200 |
8'' |
219.10 |
8.625 |
4.78 |
0.188 |
25.26 |
16.96 |
7.04 |
0.277 |
36.82 |
24.72 |
| 250 |
10'' |
273.10 |
10.750 |
4.78 |
0.188 |
31.62 |
21.23 |
7.08 |
0.307 |
51.05 |
34.27 |
Process
Packing
